V12 Setup tips?

Discussion in 'Automobilista - General Discussion' started by Aaron Green, Mar 17, 2020.

  1. Aaron Green

    Aaron Green Well-Known Member Reiza Backer

    Joined:
    Mar 8, 2016
    Messages:
    598
    Likes Received:
    258
    Afternoon all,

    Im finding that when driving the V12's that if i go around fast corners that are extended, (in particular corners like the series of fast left handers at bathurst - Frog Hollow, Sulman Park, McPhillimy Park, or the uphill fast left - Dunlop Curve) the tyres get loaded up and loaded up and then cry enough and rotate the car. Im keeping a fixed turning curve whilst going through said corners, so either the car is too low and stalling? The tyres are overheating under duress? Ive done all the logical things like raised the front fast rebounds, lowered the rears, lowered the rear ARB, etc etc etc.

    Do these cars not appreciate being lowered? Is playing around with the rear toe causing issues? Im fine with them on point and squirt circuits but im finding this loading issue a puzzling one to contain and cure on faster race circuits...

    Any tips? I like a car with a rock solid rear - i tend to generate quite a bit of oversteer naturally, never known why, but when i have shared setups with friends they have always remarked how they cant get the car to turn, where am i going wrong? Should i be raising the right height and softening springs, as opposed to the opposite?

    Any comments @Renato Simioni ? What am i doing wrong?

  2. SaxOhare

    SaxOhare Active Member Reiza Backer

    Joined:
    Mar 10, 2016
    Messages:
    671
    Likes Received:
    176
    These two pictures helped me a lot, perhaps they are of some value for you

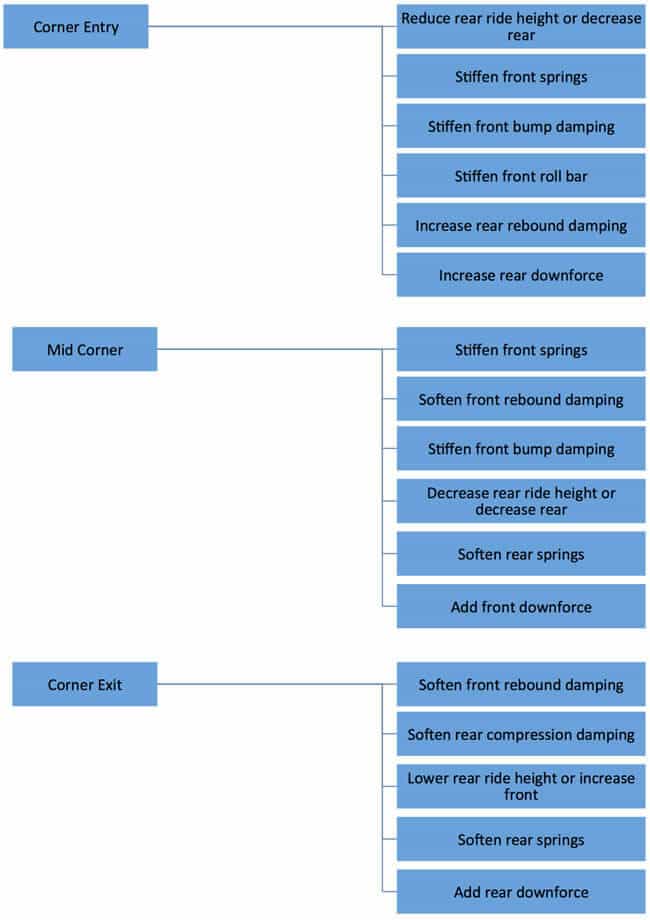

    Oversteer troubles
    [​IMG]

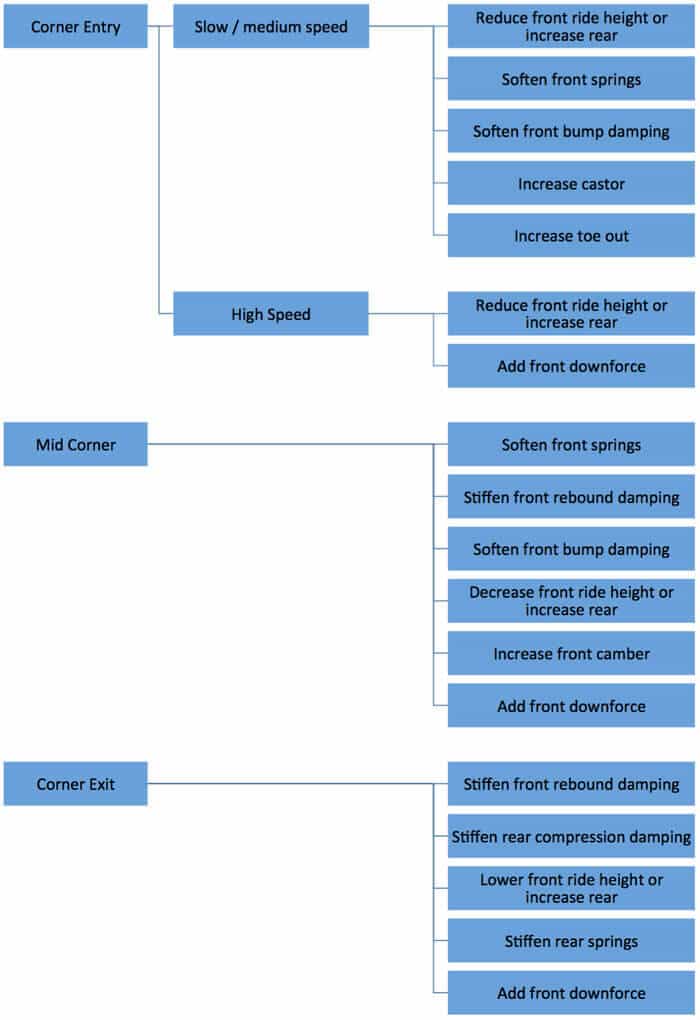

    Understeer troubles
    [​IMG]


    (There is a fault in de decrease rear decrease front in the midcorner part)

    • Like Like x 1
  3. Aaron Green

    Aaron Green Well-Known Member Reiza Backer

    Joined:
    Mar 8, 2016
    Messages:
    598
    Likes Received:
    258
    In which bit sorry? As I mainly suffer with mid corner understeer, which stops me getting on the throttle in the way I like to help gently rotate the rear. Helpful pictures though, thank you.

  4. polo199

    polo199 Member Reiza Backer

    Joined:
    Mar 10, 2016
    Messages:
    58
    Likes Received:
    17
    I would say something's missing in those pictures : sway bar settings.

    Based on my understanding:
    • Mid-corner understeer = you can try softer front sway bar and/or stiffer rear sway bar
    • Mid-corner oversteer = you can try harder front sway bar and/or softer rear sway bar.

    • Like Like x 1
  5. Amanda

    Amanda New Member

    Joined:
    Mar 29, 2020
    Messages:
    11
    Likes Received:
    0
    ARB's are definitely the first thing I try as they have the biggest impact on car handling, IMO.
    I'd do as polo199 says.
