Automobilista 2 - Extended Car Info Spreadsheet

v 1.17 (OP Updated)
- added new DPi and GTE vehicles + BMW M4 GT4
- added BMW M4 GT4 Steering Wheel Torque (Nm)
- updated Mercedes-Benz CLK LM GT1 Auto Blip Indicator
- updated Copa Classic B Fiat Uno driveline type

Fuel Tank Size (Part 10)

Cadillac DPi-V.R - (AMS2: 101 L vs Source: 71-75 L +/-)
Depending on the year and IMSA BoP this can vary in the approx 70-90 L range. iRacing has it's cousin the Dallara P217 set at 75 litres.

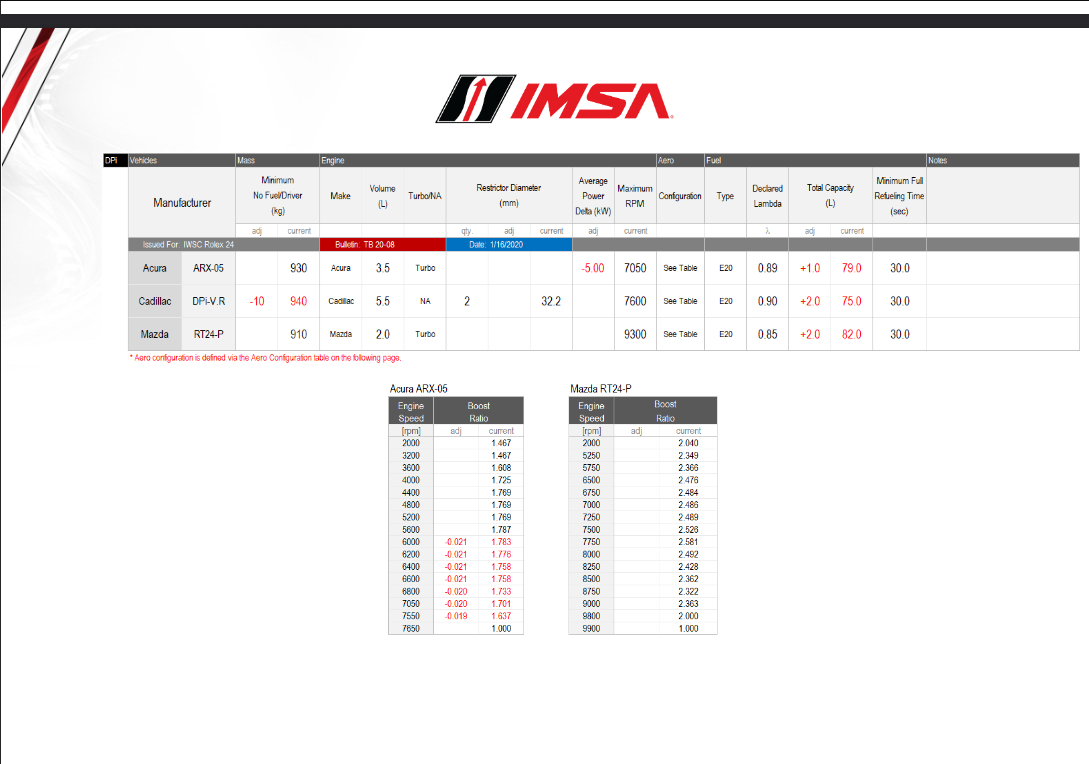

2020 - Daytona Fuel Tank Size

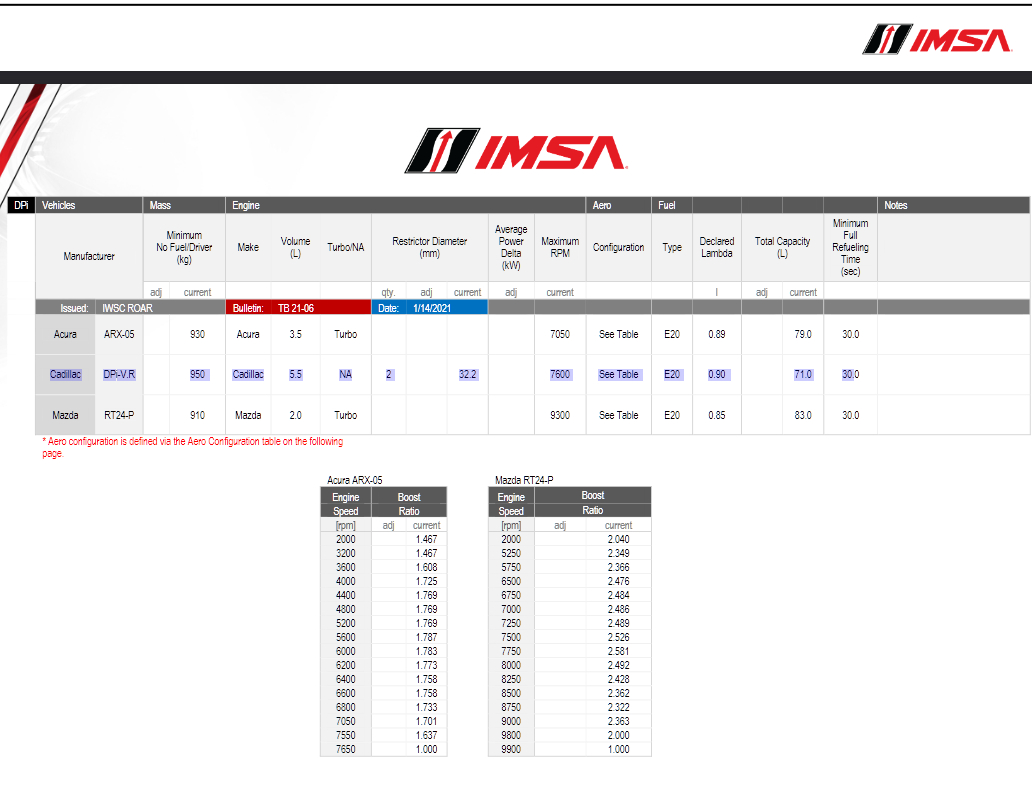

2021 - Daytona Fuel Tank Size


The same goes for GTE..
BMW M8 GTE - (AMS2: 131 L vs Source: 89-90 L +/-)
Porsche 911 RSR-19 - (AMS2: 101 L vs Source: 93-99 L +/-)
Chevrolet Corvette C8.R - (AMS2: 101 L vs Source: 94-102 L +/-)

2020 - Daytona Fuel Tank Size

2021 - Daytona Fuel Tank Size


BMW M4 GT4 (AMS2: 131 L vs Source: 125-127 L)
Going off the BMW manufacturer website this vehicle has a fuel tank size of 125 litres however they also state that this could slightly vary depending on BoP. ACC has this set at 127 litres.


Driver onboard adjustable ARB's

The Cadillac DPi-V.R and it's cousin (Dallara P217) do not feature this onboard option in real life.

DOR

BMW M4 GT4 (AMS2: 720 vs Source: 480)
ACC and R3R both have this set at 480 degrees. This is closer to it's M6 GT3 sister which has a DOR of 540. I will check iRacing when the next test day is available.

Please extend this logic to Group C when you have a chance as they only have two compounds in real life..

Fixed. Thanks..



Thanks mate. Yeah for sure from the little I have seen today. On paper it looks very impressive. Nursing a little injury + time constrained at the moment however I hope to get a little run over the coming days..



As of version 1.2.0.2 here is a updated list of errors on the vehicle selection menu..

These vehicles do not have onboard driver adjustable ARB's in AMS2 however the Ui says they do..
Chevrolet Chevette - B
Volkswagen Fusca - FL
Volkswagen Fusca HC1
Volkswagen Fusca HC2
MetalMoro MRX P4
BMW M1 Procar
Super Kart 250cc
MetalMoro MRX Duratec Turbo P3
MetalMoro MRX Honda P3
Roco 001
BMW M3 Sport Evo GrA
Mercedes-Benz 190E EVO 2 DTM
Brabham BT44
McLaren M23

These vehicles do have onboard driver adjustable ARB's in AMS2 however the Ui says they do not..
Brabham BT46B
Cadillac DPi-V.R

These vehicles do not have onboard Brake Bias adjustment in AMS2 however the Ui says they do..
Chevrolet Chevette - B
Volkswagen Fusca - FL
Formula Trainer Advanced
Volkswagen Fusca HC1
Volkswagen Fusca HC2
Super Kart 250cc
MetalMoro MRX P4 (This vehicle should have this adjustment)

These vehicles do not have headlights in AMS2 however the Ui says they do..
Caterham Superlight (360R)
Caterham Supersport (360R)
Volkswagen Fusca- FL
Chevrolet Opala Oldstock
Chevrolet Opala 79

These vehicles do have headlights in AMS2 however the Ui says they do not..
Volkswagen Fusca
Roco 001

These vehicles do have turbo adjustment in AMS2 however the Ui says they do not..
McLaren 570S GT4
BMW M4 GT4
Puma P052

These vehicles have the wrong drive-line info in AMS2..
Copa Truck (All vehicles should be listed as a Inline/Straight 6)
Copa Fusca (Should be listed as Inline/Straight 4)
Hot Car Fusca (Should be listed as RWD)
Brabham BT46B (Should be listed as a Horizontal/Flat 12)
FormulaVee Brazil + Fin (Should be listed as Inline/Straight 4)
Aussie Racing Cars (Should be Inline/Straight 4)

These vehicles have the wrong transmission info in AMS2..
Fiat Uno - B (Missing H-Pattern label)
MCR S2000 - P4 (Should be 5 speed sequential)

These vehicles are missing the class string in AMS2..
Kart 125cc Shifter

*Pit Limiter Ui inaccuracies will not be checked now until this is properly implemented.



v1.18 (OP Updated)
- updated engine performance output & power to weight ratio for GT3 / GT4 / P1 as per the new BoP set in AMS2 v1.0.2.0
- fixed turbo adjustment indicator for Brazilian Stock Cars



GTE Tyre Grip

Firstly I really enjoy these cars however I am seeing some very unrealistic times due to excessive amounts of grip available. We currently have two extra tyre compounds compared to real life which I presume will be disabled at some stage like it was for GT3/4. Question is what slick tyre will be switched off; the soft or the hard..?

add: I was wrong about the extra compounds..

For my first run I ran the BMW M8 GTE at Nurburgring Veedol circuit with 130 litres of fuel it was simply too easy especially for how aggressive I was driving and with low TC. I then went to a test day with 20 litres of fuel with the default setup and on my first push lap I went into the 1:48's.. It will be fairly easy to go into 46/47's with a decent warmup and some setup changes. Last time GTE ran at Nurburgring I think they were in the 1:54's. I know the GTE's we have in AMS2 follow IMSA wich use a Michelin tyre therefore if you look at the Laguna Seca TT lap times drivers are already registering 1:15's which is on par with DPi real life times. Last years real life qualifying time at Laguna was a 1:21.4.

As much as I enjoy driving GTE's this fast I presume this will be addressed later. Not that it bothers me; with the recent BoP changes and major engine output changes to the P1 AJR Honda I think once these tyres are sorted it maybe time for Reiza to reset the TT leader boards.. Something they have been alluding to for the last couple of major releases..



IMSA’s Five Competition Classes, Explained – Sebring Raceway



nice info thanks.. Has it always been like that..? I thought i read a while back it was one compound..

add: an article from 2020 suggests they can run different compounds on each corner.. Interesting and sorry I got it wrong..

Michelin by the Numbers | IMSA

"Things get considerably more complicated in GTLM, where Michelin works with the participating car manufacturers to design and produce proprietary soft- and hard-compound slicks tailored to the performance characteristics of each car. What’s more, teams are free to mix and match compounds on all four corners of the car, for example, choosing to run soft-compound Michelins on the front and hard compounds on the rear or even different compounds from side to side."

I wonder if Reiza will add the 2021 medium tyre and how they will address the soft slick grip..



Just dropping by to thank Coanda publicly for putting all of this together, and showing what a sloppy job I´m doing of keeping the vehicle UI info I think one can tell I hate doing this The data needs to be manually inserted into a separate UI stat file instead of being picked up automatically from the physics like in AMS1, which creates plenty of room for mistakes.

I´ve amended most if not all of the UI info reports now, and will go over the engine output data in time for the next big update. I´ve also addressed some of the innacuracies with onboard brake bias / roll bars and tire selection on the cars themselves.

With regards to GTE, it is indeed the case that they have the 3 tire options in IMSA. The medium tire is there, although I´ve seen reports it´s appearing blank on the UI spinner (still to follow up on that report).

In terms of grip and lap times, I don´t think they´re particularly innacurate - you´re always going to get a couple of seconds over real times, specially in TT mode where grip and conditions are atypically ideal. Laguna may be an outlier there, but that may also be at least partially due to somewhat lenient track limits as elsewhere the lap times seem to stack up reasonably. With that said there has been an adjustment to longitudinal slip specifically on GTE & GT3 tires for the complementary update today, although I´m unsure that will reflect much on potential lap times.



Yeah and the soft tire is shown as the medium one, so there is something swapped in the tire names probably.



Thank you for the kind words guys.

Nothing here was ever intended to be personal or against AMS2. It all kicked off by wanting to know what vehicles had power steering and what that exercise morphed into was many hours searching for historic technical regulations and translating hundreds of Portuguese documents looking for gold nuggets..

I am very happy that it did go this way because I enjoyed it and learnt a lot along the way whilst keeping my mind off the sh!tstorm we are all going through..

Hopefully some of these technical regulation findings are of some use..



I'm sorry matey I don't think it looks much like the F2002. It has many similar features to the FW22 and as you rightly say it features the FW22 steering wheel. I am happy to remove the TF101 tag as I only saw some similarities around the aero in front of the rear tyre..



v1.19 (OP Updated)
- updated engine performance output & power to weight ratio for GTE / GT3 / GT4 + P1 AJR Chevy as per the new BoP set in AMS2 v1.0.2.5
- updated BMW M4 GT4 steering DOR
- updated GTE, DPi, BMW M4 GT4 fuel tank sizes
- corrected GTE # of Tyre Compounds
- updated Group C, P1 / 2 / 3 / 4, Copa Montana, Stock Car Brasil 2019, Ultima Race # of Tyre Compounds
- updated Metalmoro MRX P4 Brake Bias Indicator


A great update as a lot of Ui info was updated

As of version 1.2.0.5 here is a updated list of Ui inaccuracies on the vehicle selection menu..

These vehicles have the wrong drive-line info in AMS2..
Copa Fusca (Should be listed as Inline/Straight 4)
Hot Car Fusca (Should be listed as RWD)
Brabham BT46B (Should be listed as a Horizontal/Flat 12)

These vehicles have the wrong transmission info in AMS2..
Fiat Uno - B (Missing H-Pattern label)
MCR S2000 - P4 (Should be 5 speed sequential)

These cars/classes have a discrepancy of tyre info between the vehicle selection and the setup Ui..
Porsche 911 GT3 Cup 3.8
Formula Reiza
Formula V10 G1
Formula V10 G2
GT1
GTE

These vehicles are missing the class string in AMS2..
Kart 125cc Shifter



Summary as of v1.2.0.5 (Part 1)

Cross checking from creditable sources, manufacture websites, regulations, technical handbooks the following vehicles did not align with their real life counterpart.

Driver Adjustable ARB's

These vehicles do not have onboard driver adjustable ARB's in real life and AMS2 they do..

Copa Montana

Copa Truck

DPi
- There is no cockpit photographic or video evidence to suggest there is and it's cousin (Dallara P217) do not feature this option in iRacing.

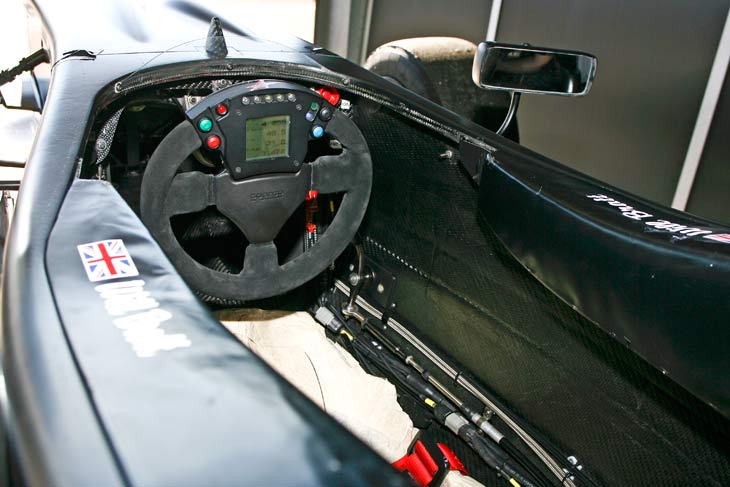

F3
- Dallara technical owners manual and iRacing do not have this option. There is no cockpit photographic or video evidence to suggest there is.

Formula Classic G1-3 - (Front ARB's only if Madness engine allows that)

Formula Classic G3 M3 & Formula Reiza & Formula V10 G1-2

Formula V12 (Ferrari 412 T2) - (Front ARB's only if Madness engine allows that)

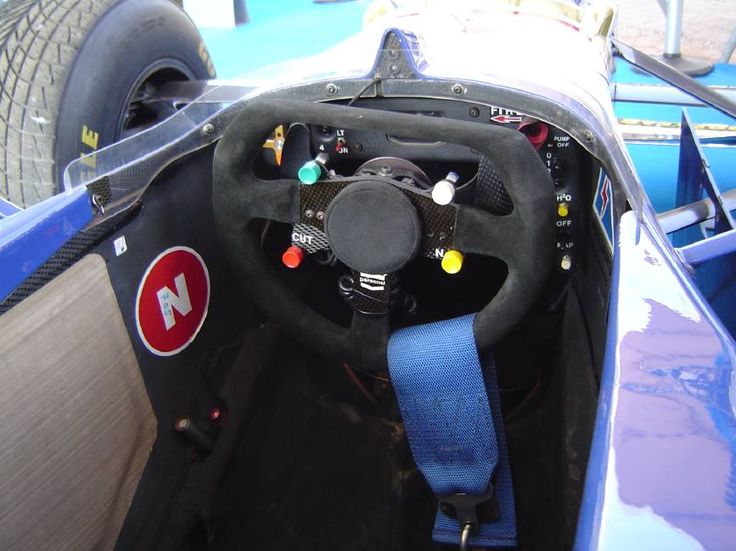

- This is a difficult vehicle to confirm as the photographic evidence online shows no adjustment lever for the 412 T2. Unlike the the earlier 90's Ferrari F1's that clearly had front ARB adjustment levels mounted both on the LH & RH side within the cockpit.

Group C

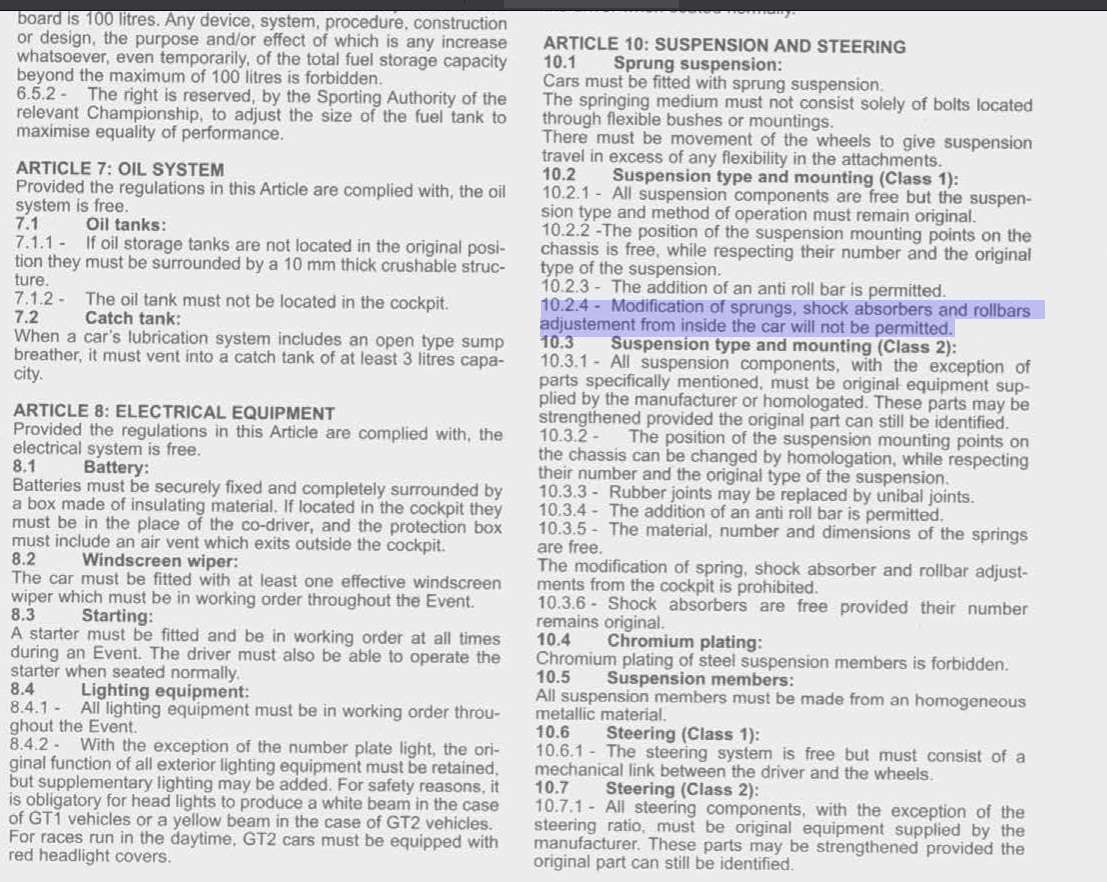

GT1

P1 & Sigma P1
- No photographic or video evidence to suggest this option exists. The G58 & P217 technical manual do not have this option.



Summary as of v1.2.0.5 (Part 2)

Sprint Race (2016 onward) - (Front ARB's only if Madness engine allows that)

These vehicles do have onboard driver adjustable ARB's in real life and AMS2 they do not..

MCR S2000

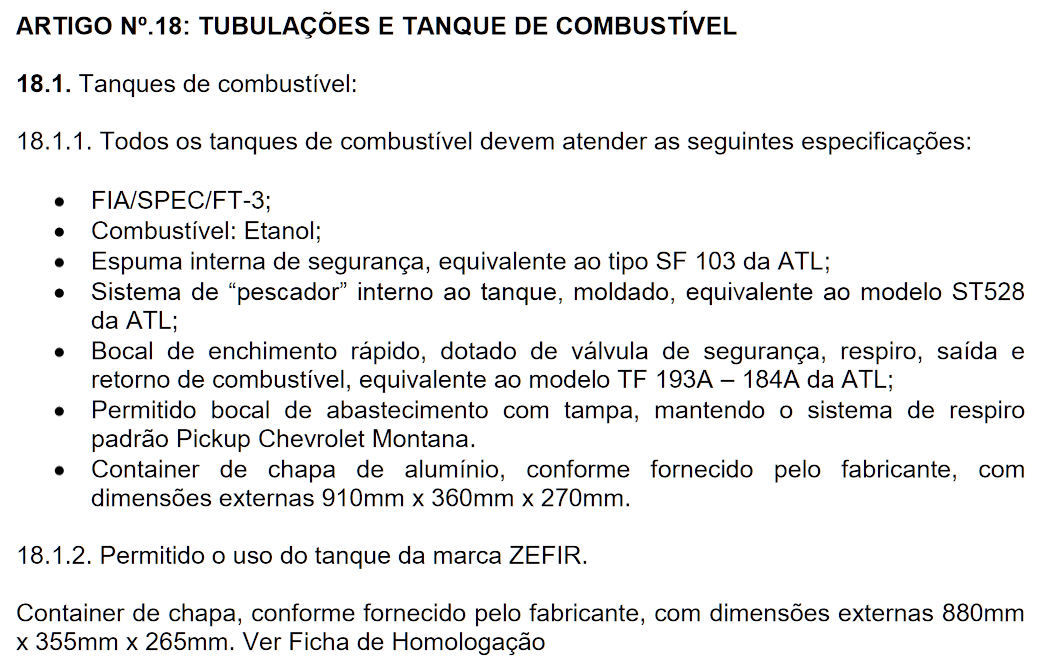

Fuel Tank Size

These vehicles do have fuel tank size discrepancies with their real life counterpart..

Copa Montana

F3

Formula Classic G2

Formula Retro G1-2

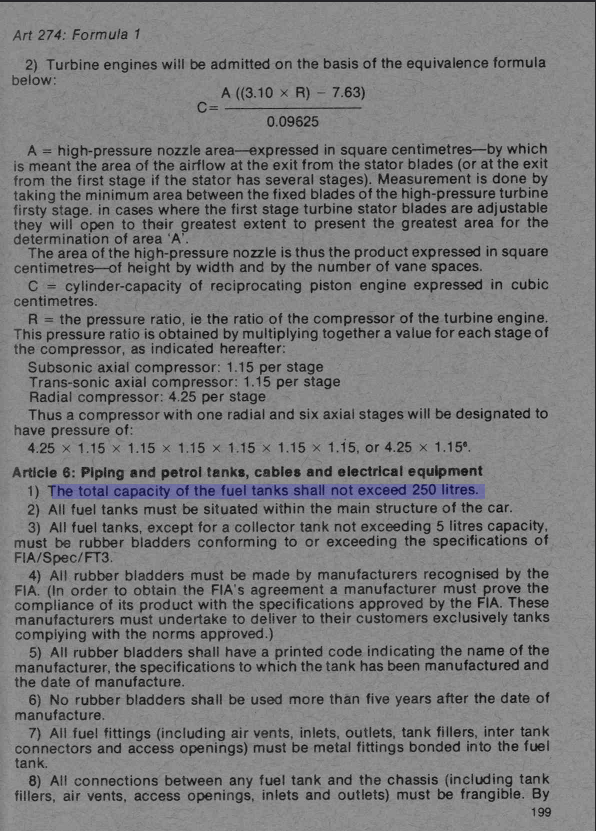

Formula V12

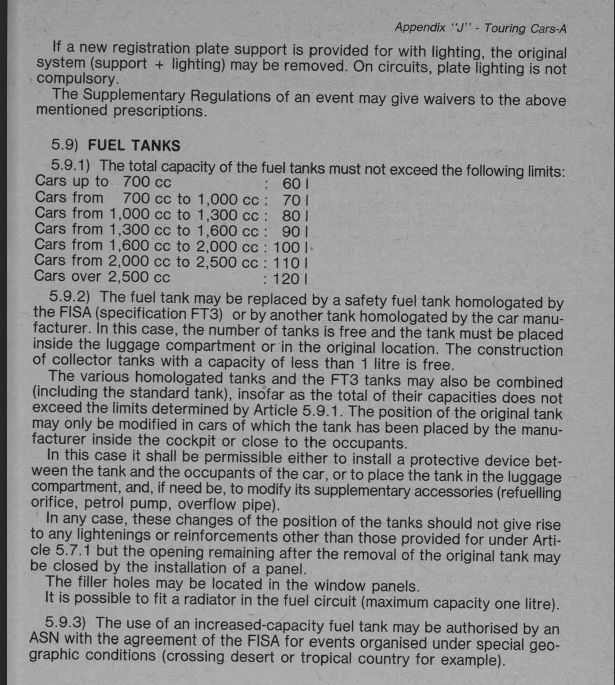

Group A DTM

BMW M6 GT3

Porsche 911 GT3 R

McLaren 720S

Camaro GT4.R (AMS2: 96 L vs Source: 120 L)
- SRO/ACC suggest this vehicle to be 120 litres.

Porsche Cayman GT4 CS MR

BMW M1 Procar

MINI Cooper

MetalMoro MRX P3/4

Opala Old Stock

Stock Car Brasil 1986 & 1999

McLaren F1 LM

Ultima GTR (640)

Chevrolet Camaro SS



Summary as of v1.2.0.5 (Part 3)

Steering DOR

Ultima GTR Race

Super V8 (Gen2 ZB)
- iRacing has this set at 380 and AMS2 is 450. Hard to know for sure which sim is correct.

Vehicle Weight

Formula Retro V8 - Unless the Ui is wrong this vehicle is between 75-100 KG lighter than all other Formula Retro's in it's class and does not align with vehicle weights from this era.

Engine Output

Volkswagen Fusca HC1-2 - From my research I believe the Volkswagen Gol ran a 1.6 liquid cooled engine whilst the Fusca ran a 1.6 L air cooled engine. Currently the Gol and the Fusca have the same engine output. I believe the Fusca should be slightly less.
