Z1 Analyzer

Discussion in 'Automobilista - Links & Resources' started by Russell Hodgson, Sep 29, 2016.

  1. Russell Hodgson

    Russell Hodgson Member

    Joined:
    Sep 28, 2016
    Messages:
    70
    Likes Received:
    10
    Version 1.10 of the Z1 Analyzer introduces the ability to create custom traces. This allows you to use mathematical formulas against any of the 50 data channels to create a desired trace, or to combine multiple data channels on the same trace. They are a powerful tool that lets you display the data from your lap in almost any way you like.



    You can download the Z1 Analyzer here: Z1 Dashboard

    You can create a custom trace by selecting New Custom Trace from the File menu or by right clicking on a trace and choosing Custom Trace and then New Custom Trace.

    The New Trace Dialog is where you create or edit a custom trace. You can have up to 4 lines displayed in your trace. You can select the number of lines in this drop down. Then to edit a line just click within the box for that line and it will become highlighted.

    Now why do you need multiple lines in a trace? There may be occasions where one is enough, such as an inverse corner radius trace. That is a simple trace the combines two data points into a single line. But there may be times when you want to overlay data. This is where multiple lines are necessary. Overlaying the brake and throttle trace would require two lines. Overlaying tire temperatures from all four wheels would require four lines. So make sure you choose the correct number of lines for your custom trace's needs.

    You select the data that is displayed in each line using the Data Channels and Operators. The Data Channels table lists all available data that you can include in your trace. This data is listed alphabetically by default. But you can also choose to group the data together by topic by selecting 'Grouped' from the Sort drop down.

    Each item of data includes its name and units. Take the Brake for example. This is a percentage going from zero to one. If you wanted it to be displayed as a percentage from zero to one hundred you would need to multiply it by 100. Now let's look at Speed. That uses meters per second. So if you wanted to display it as miles per hour you would have to multiply it by 2.23694.

    To add a data channel to your formula, just click the desired data channel in the table.

    Next up - the operator buttons. They work just like a calculator. Click the desired ones and they will be added to the formula. If you make a mistake and want to delete the last item entered into your formula, click the Delete Step button.

    You can also choose the number of decimal places used to display the data in the trace. This is zero by default, but you can choose to have up to 4 decimal places displayed in the trace.

    Make sure you give your custom trace a name, and then click Create Trace. The Z1 Analyzer will check your formulas to make sure they can be calculated. If there is a problem you will be alerted to the issue and will have to fix the formula before creating the trace.

    Once your trace has been created it will be available under the Custom Traces section of the popup menu. Right click on any trace to display the popup menu. Then select your new custom trace from the Custom Trace menu and there you go! Your very own trace displaying exactly what you wanted!

    If you want to make changes to your custom trace, choose Edit Custom Traces from either the File menu or the Custom Trace popup menu. This displays a dialog that lists all existing custom traces. Double click the one you want to edit and the Edit Trace Dialog is displayed. This functions the same way the New Trace Dialog does. Once you have made your changes click Save Trace to exit, or Cancel to discard the changes.

    You can download the Z1 Analyzer here: Z1 Dashboard

  2. Russell Hodgson

    Russell Hodgson Member

    Joined:
    Sep 28, 2016
    Messages:
    70
    Likes Received:
    10
    Version 1.11 of the Z1 Analyzer is now available.

    This latest version adds many new features and improves on the existing ones. The layout is now completely flexible, with all components being resizable and drag-able. We've added a completely new brake points analysis to help drivers determine how their braking compares to others at each turn. There is a new timing delta trace to show how the lap time is gained/lost between laps. And commercial users can now run up to six instances simultaneously.

    Movable/resizable Layouts
    [​IMG]

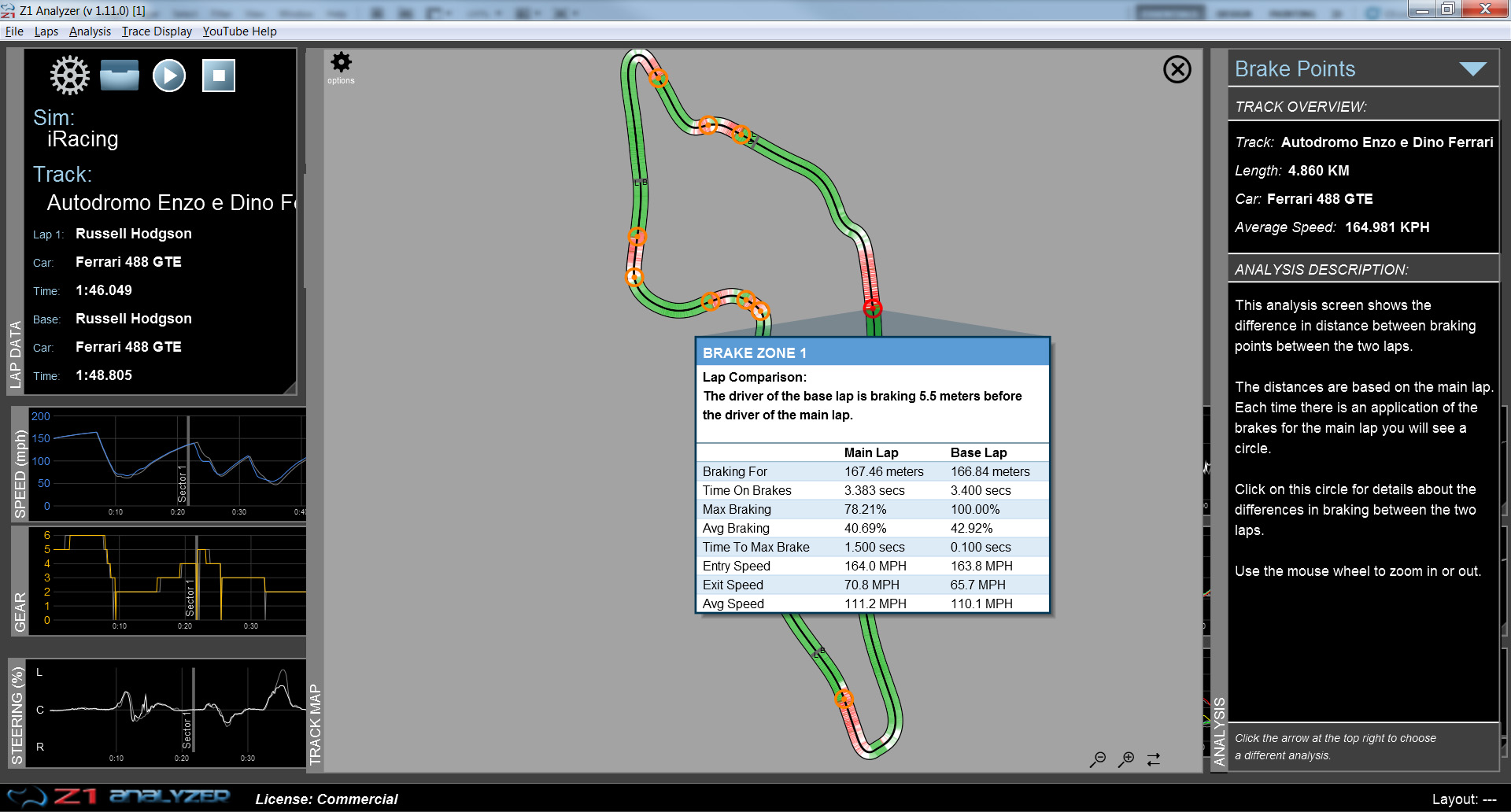

    New Brake Points Analysis
    [​IMG]

    New Timing Delta Trace
    [​IMG]

    Lap Scan Dialog Now Shows Current Filters
    [​IMG]

    The demo is available here: Z1 Dashboard

    Here is the full list of release notes:
    * Commercial users can now run up to 6 instances of the Z1 Analyzer simultaneously. To launch additional instances simply launch the Analyzer again. Each instance will have its own specific settings. The custom layouts and custom traces are shared between all instances. Only the first instance can perform a lap scan. The other instances use the data from that lap scan to load laps.

    * The previous way of changing a trace's location or size has been replaced. You no longer specify if a trace should take up 1 or more horizontal or vertical slots. Instead you can simply left click on the title of the trace and drag it where you want to place it. The layout of the traces will be saved when you exit the Analyzer. They will also be saved if you create a custom layout, so that you can restore it later when you load that layout.

    * You can resize a trace by clicking and dragging the lower right corner of the trace.

    * The Lap Data window can be moved and resized just like a trace window.

    * The Track Map window can be moved and resized just like a trace window.

    * The bottom right corner of the track map is no longer used to display the analysis screens. That corner now lets you resize the track map display.

    * There is a new icon at the top right of the track map display. Click on this icon to display the analysis overview screen.

    * All analysis screens now have a small 'X' ixon at the top right of their display. Click this icon to close the analysis and return to the trace graphs.

    * There is a new menu item under the Analysis menu, called 'Close Analysis Screen'. This will close any open analysis screen.

    * When you click on a trace it will automatically be brought to the front. If it overlaps any other traces they will now appear behind the clicked traced. You can turn this 'bring-to-front' behavior off by unchecking the Auto Bring To Front option in the settings dialog.

    * The Trace Display menu, available when you right click on a trace, now has four options. Maximize trace will make the selected trace take up the entire screen. Restore Trace will unmaximize a maximized trace. Hide trace will make the trace invisible. Reset traces will return all traces to their default locations and sizes.

    * There is a new top level menu, Trace Display. This allows you to reset all the traces by selecting Reset Traces. It also lets you control the visibility of each individual trace.

    * There is a new analysis screen called 'Brake Points'. This will display information about each brake zone. A brake zone is defined as any time the driver of the main lap applied the brakes. The information given is the distance the driver was on the brakes, the total time they were on the brakes, the maximum braking level used during braking, the average braking level used during braking, the time it took the driver to reach the maximum braking level, the speed at the beginning of the brake zone, the speed at the end of the brake zone, and the average speed during the brake zone. If two laps are loaded this information will be displayed for both laps allowing for a comparison. In addition if two laps are loaded the difference in distance between when each driver applied the brakes will be displayed.

    * The display of the Turn Analysis comments has been improved. It now uses the same updated look of the Brake Points analysis. The box positioning has been improved to prevent it from being displayed partially off screen in any situations.

    * When you open a lap file the Z1 Analyzer will now check with our server to see if there is a track edge definition file for the track you are loading. This allows us to provide you with new track edge files when they become available without your having to perform an update or other installation. It also allows us to provide a smaller installer file as we no longer have to package all the track edge definition files within the installer. This is important as the growing number of track edge files were making the installer much larger than it needed to be. If you do not want the Z1 Analyzer to check for the track edge file you can turn this feature off by unchecking the checkbox called 'Download Track Edges' in the Z1 Analyzer's settings dialog. (Note: if there is already a track edge definition file on your computer then this check against the server is skipped.)

    * A new trace called 'Timing Delta' is available under the Driving Inputs sub menu. This trace shows the delta in lap time between two laps. For this to have any data displayed you must have two laps loaded. The delta time is comparing the main lap to the base lap. If the delta is positive that means the main lap is behind the base lap. If the delta is negative that means the main lap is ahead of the base lap.

    * Added a new data point for Water Level (Coolant Level). This is available as a basic trace and for use within custom traces. You can set the color used for this trace in the Color tab. The limits can be set in live telemetry in the Commercial tab (assuming you have a commercial license.)

    * Added two new data points: ERS Lap Level and ERS Max Per Lap. ERS Lap Level is the amount of ERS you have left this lap. ERS Max Per Lap is the total amount of ERS you can use for the entire lap. This can be graphed in the basic trace called 'ERS This Lap'. You can also use these two data points in your custom traces. In addition you can set a color for the ERS This Lap trace, and set maximum and minimum limits (for commercial license users) for the ERS Lap Level.

    * You can now clear the base lap by using the new menu option under the Laps menu of "Clear Base Lap". If you have a base lap loaded it will be cleared when selecting this option.

    * The Lap Scan dialog now resets the display each time it is opened. Previously it would retain the lap scan data, which made it harder to see the current scan status if a scan was repeated.

    * The Analyzer will now check for the existence of the Z1Analyzer folder in your documents folder upon startup. If the folder does not exist an error message will be displayed and the Analyzer will quit.

    * The Lap Scan dialog now shows the current filters that are in effect for the lap scan (lap age, start/finish percentages).

    * There is a new top level menu called "YouTube Help". This menu lists various YouTube videos that help to explain features of the Z1 Analyzer. Selecting one of these menus will open the YouTube video in your default browser.

    * The Analyzer will check the vertical resolution of the screen. If it is too low a warning message will be displayed alerting you to the issue. This can alert you that dialogs may be cut off on smaller screens.

    The demo can be downloaded here: Z1 Dashboard

  3. Russell Hodgson

    Russell Hodgson Member

    Joined:
    Sep 28, 2016
    Messages:
    70
    Likes Received:
    10
    The Z1 Analyzer is a very powerful telemetry analysis tool that comes with the Z1 Dashboard. There is so much that you can do with it, including:
    1) View basic graphs of data channels
    2) Display custom traces
    3) Replay laps in real time
    4) View track map overlays
    5 Getting advice on how to drive the lap better from its various analysis screens.

    And much more!

    This leads to a lot of settings that allow you to customize the software. The manual has been updated to include descriptions of all the settings within the software.

    Whether you are a seasoned user or just starting out with the Analyzer we suggest taking a look at this page to get the most from the software: Z1 Analyzer : General Settings

  4. Russell Hodgson

    Russell Hodgson Member

    Joined:
    Sep 28, 2016
    Messages:
    70
    Likes Received:
    10
    We have released version 1.11.1 of the Z1 Analyzer. This is a patch that fixes a few bugs found in version 1.11.0.

    The demo can be downloaded here: Z1 Dashboard

    Existing users can get the update here: Z1 Dashboard | My Dashboard

    Here is the list of fixes:
    * Fixed a bug associated with the Analyzer screens and menu selection that could cause the application to crash.

    * Fixed several bugs associated with background threads and file selection that could cause the application to crash at random times.

  5. Russell Hodgson

    Russell Hodgson Member

    Joined:
    Sep 28, 2016
    Messages:
    70
    Likes Received:
    10
    Version 1.12 of the Z1 Analyzer is now available!

    We spent a lot of time updating the various DLLs and other dependencies on this release. The result is a faster, more efficient version of the Analyzer, that is better integrated with the latest Windows 10 releases.

    In addition we've added a new file format, ZOD2, to allow for more detailed information to be recorded for each lap. This is being introduced for Kart Racing Pro in this release, and all other sims in the next version.

    And of course there are new features, such as Snap to Grid when moving traces around, a new data channel for Cylinder Head Temperature, new ABS and Negative operators for custom traces, and more.

    Updated Brake Lockup Analysis screen now works with Wheel RPS as well as Wheel Speed
    [​IMG]

    New Cylinder Head Temperature trace
    [​IMG]

    New ABS and Negative option buttons in custom traces
    [​IMG]

    New Snap to Grid options
    [​IMG]

    Existing users can get the update here: Z1 Dashboard | My Dashboard

    New users can get the demo here: Z1 Dashboard


    Here is the full list of release notes:
    * Updated various DLLs and dependencies related to graphics and display to improve performance.

    * Implemented a new data recording file format - ZOD2. This brings various improvements over the original format that allows for more accurate lap timings and sectors times. In addition it will help get rid of partial laps that could sometimes occur with the ZOD file format. This new file format will also allow for better future expansion. As of this release it is only associated with Kart Racing Pro. Other sims will be supported in future releases of the Z1 Analyzer.

    * There is a new settings called 'Show Grid' in the General tab of the settings dialog.. This will display the background grid used in the Snap To Grid feature. This is off by default.

    * There is a new setting called 'Snap To Grid' in the General tab of the settings dialog. When turned on this will make sure all windows that are moved or resized will line up with the square grid. This allows you to more easily align traces for a better looking layout. This is on by default.

    * There is a setting called 'Grid Size' in the General tab of the settings dialog. This allows you to set the size of the snap grid. The default size is 5.

    * There is a new trace for Cylinder Head Temperature. This is available under the Engine State sub menu. In addition you can set the color of this trace in the Color tab of the settings dialog. And commercial users can set minimum and maximum value alerts for this trace in the commercial tab of the settings dialog.

    * The Wheel RPS trace now displays all values as positive. This allows for sims like RaceRoom which reports wheel RPS speed as negative to still be displayed on the trace's graph.

    * The Wheel RPS trace is now associated with the Graph From Zero option. When the Graph From Zero option is turned off the graph will show minimum numbers based on the wheel RPS of the lap. This allows for more detail in the graph.

    * The Project Cars 1 and Project Cars 2 network connectivity options have been combined into a single drop down where you select the version you would like to connect to.

    * There is now an ABS (absolute value) button in the custom trace layout operators.

    * There is now a NEG button in the custom trace layout operators. This will multiply the appropriate value by negative one (-1).

    * The brake lockup analysis screen now works with sims that report negative wheel RPS rates, such as RaceRoom.

    * You can now specify the color of the background of the entire analyzer screen. This is available in the Colors tab of the settings dialog. Look for the Background swatch at the bottom of the third column.

    * You can specify the color of the snap grid. This is available in the Colors tab of the settings dialog. It is at the bottom of the third column.

    Download the demo here: Z1 Dashboard
